Branch Indoor Optic Cable 6 8 12 24 36 cores Single Mode G652D For Distribution
| उत्पत्ति के प्लेस | शेडोंग, चीन |
|---|---|
| ब्रांड नाम | EBOCOM |
| प्रमाणन | ISO TLC |
| मॉडल संख्या | शाखा केबल |
| न्यूनतम आदेश मात्रा | 2000 मीटर |
| मूल्य | EXW ≥2000m $0.16/M ≥5000m $0.14/M |
| पैकेजिंग विवरण | 1। आयरन-वुडन ड्रम या नॉन-फ्यूमिगेशन वुडन ड्रम, सामान्य लकड़ी के ड्रम। 2। ड्रम का आकार डिज़ाइन किया ज |
| प्रसव के समय | 5-8 दिन |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | 5000kms/दिन |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| उत्पाद का नाम | शाखा केबल | जैकेट | पीवीसी / एलएसझेडएच |
|---|---|---|---|
| शक्ति सदस्य | अरामिड यार्न | फाइबर | सिंगल मोड / मल्टी मोड |
| ब्रांड | Ebocom या oem | ||
| प्रमुखता देना | Indoor Optic Cable 36 Cores,24 Branch Indoor Optic Cable,6 Branch Indoor Optic Cable |
||
उत्पाद विवरण
Description

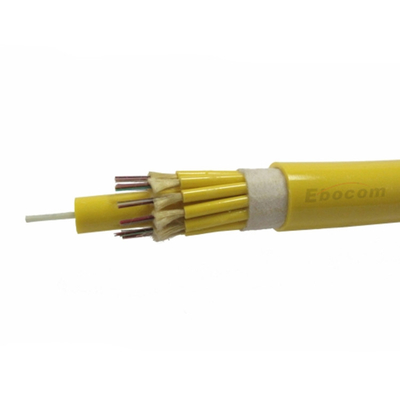

This is a multi-purpose optical fibre branch cable with a twisted cable structure. It is composed of tight buffer fibre, FRP and aramid strength components. External PVC or LSZH jacket.
The optical fibre branch cable is a kind of stranded multi-purpose cable. For example, it is widely used as indoor power distribution cables and backbone cables in buildings.
All tight cushioning fibres are wrapped and protected with aramid yarn. Tight cushioning fibre and aramid yarn are completed separately from the base jacket. Then, all fibre units revolve around fibre-reinforced plastic centre strength elements. Waterproof tape can be added between the stranded unit and the external PVC or LSZH sheath.
Features
Central FRP strength member
Stranded tight buffer fiber units provides excellent tensile performance
Corrosion resistant and waterproof outer sheath
Environment friendly jacket material
Flame retardant outer sheath for indoor and building safety application
Aramid yarn in tight buffer fibers also improves the tensile standard
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
- Duplex optical fiber active link jumpers and pigtails;
- Indoor shaft level and forced ventilation level wiring;
- Interconnection of instruments and communication
