Flame Retardant Mining Fiber Cable 24 36 48 96 144 Cores for Mining Application
| उत्पत्ति के प्लेस | शेडोंग, चीन |
|---|---|
| ब्रांड नाम | EBOCOM |
| प्रमाणन | ISO TLC |
| मॉडल संख्या | एमजीटीएसवी |
| न्यूनतम आदेश मात्रा | 2000 मीटर |
| मूल्य | EXW ≥2000m $0.3/M ≥5000m $0.29/M |

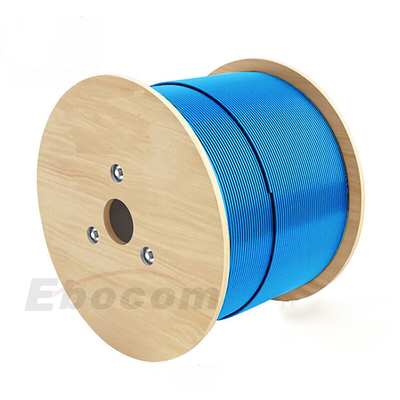

| पैकेजिंग विवरण | 1। आयरन-वुडन ड्रम या नॉन-फ्यूमिगेशन वुडन ड्रम, सामान्य लकड़ी के ड्रम। 2। ड्रम का आकार डिज़ाइन किया ज |
| प्रसव के समय | 7 से 15 दिन |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | 10kms/दिन |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| केबल मॉडल | एमजीटीएसवी फाइबर ऑप्टिक केबल | शक्ति सदस्य | इस्पात तार टेप |
|---|---|---|---|
| जैकेट की सामग्री | पे फ्लेम रिटार्डेंट पीई/एलएसजेडएच | ट्यूब | सेंट्रल लूज ट्यूब |
| मुड़ी हुई बहिः प्रकोष्ठिका | स्टेटिक 10*केबल-डी डायनेमिक 20*केबल-डी | परिचालन तापमान | -40 डिग्री सेल्सियस ~ + 70 डिग्री सेल्सियस |
| रंग | काला | फाइबर की गिनती | 4-288 करोड़ |
| प्रमुखता देना | Mining Application Fiber Cable,Flame Retardant Mining Fiber Cable,48 Cores Mining Fiber Cable |
||
उत्पाद विवरण
Product description

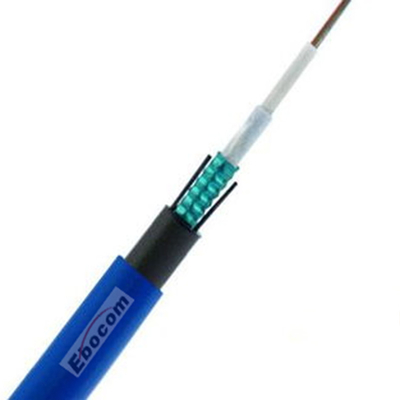

MGTSV optical fibre cable, optical fibre, 200μm or 250μm, is located in a loose tube made of high-modulus plastic. The tube is filled with waterproof filling compounds. The steel wire is located in the centre of the iron core and acts as a metal strength rod. The tube (and the filler) is strung into a compact round cable core around the strength component. The cable core is filled with filling compounds to prevent water from entering. PSP is applied vertically to the cable core, apply a thin PE inner sheath, and then complete the cable with the PE outer sheath.
Features
High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Good crush resistance and flexibility
Structure parameters:
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 |
| Cable Diameter(mm) | 10.6 | 11.2 | 11.5 | 12.1 | 13 | 14.6 | 15.8 |
| Weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 |
| Fiber Type | G652D G657A1 A2 50/125 62.5/125 | ||||||
| Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||
| Temperature(ºC) | Storage /Operation:-40ºC~70ºCof our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc. | ||||||
