All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
| उत्पत्ति के प्लेस | शेडोंग, चीन |
|---|---|
| ब्रांड नाम | OEM |
| प्रमाणन | ISO TLC |
| मॉडल संख्या | ADSS -48B1.3 |
| न्यूनतम आदेश मात्रा | 2000 मीटर |
| मूल्य | EXW $0.3/M |
| पैकेजिंग विवरण | 1। आयरन-वुडन ड्रम या नॉन-फ्यूमिगेशन वुडन ड्रम, सामान्य लकड़ी के ड्रम। 2। ड्रम का आकार डिज़ाइन किया ज |
| प्रसव के समय | 5-8 दिन |
| भुगतान शर्तें | टी / टी, एल / सी |
| आपूर्ति की क्षमता | 5000kms/दिन |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| फाइबर का प्रकार | G652D/G657A1 A2 | फाइबर की गिनती | 2-288 कोर |
|---|---|---|---|
| शक्ति सदस्य | एफआरपी | जैकेट | पी.ई |
| जैकेट का रंग | काला | ब्रांड | ओईएम |
| प्रमुखता देना | ADSS Fiber Optic Cable,Networking ADSS Fiber Optic Cable,Self Supporting ADSS Fiber Optic Cable |
||
उत्पाद विवरण
Description

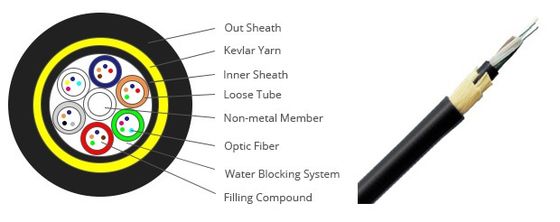

ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers
Features&Application
1.Utility Companies:
ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines
2.Telecommunications:
They are also used by telecommunications companies for providing high-speed internet and other communication service
3.Campus Backbones:
ADSS cables are suitable for establishing reliable communication links within campuses and between building
4.Long-Span Applications:
ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure
Specification

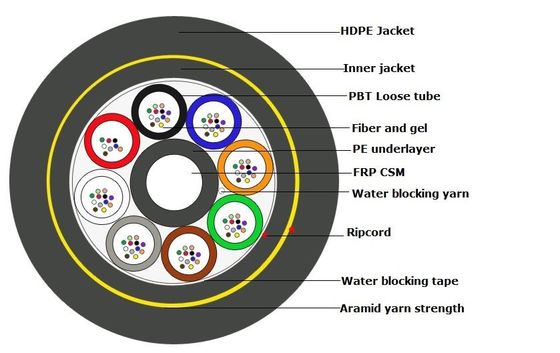

| Fiber Count | 12 | 24 | 36 | 48 | 96 | 144 | |
| Fiber Count Per Tube | 6 | 6 | 6 | 12 | 12 | 12 | |
| Loose Tube | Material | PBT | |||||
| Water Blocking Material | Fiber Jelly | ||||||
| Counts | 2 | 4 | 6 | 4 | 8 | 12 | |
| Central Strength Member | Material | FRP Rod (Coated with PE if needed) | |||||
| Counts | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | |
| Overall Diameter (nom.)(mm)(±0.2) | 10.3 | 10.4 | 10.4 | 11 | 12.3 | 14.9 | |
| Outer Jacket | Material | HDPE, Black | |||||
| Nominal Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Cable Weight | Kg/Km | 73 | 76 | 76 | 86 | 109 | 162 |
| Temperature Range | Operation | -30°C~+70°C | |||||
| Storage | -30°C~+70°C | ||||||
| Installation | -10°C~+60°C | ||||||
