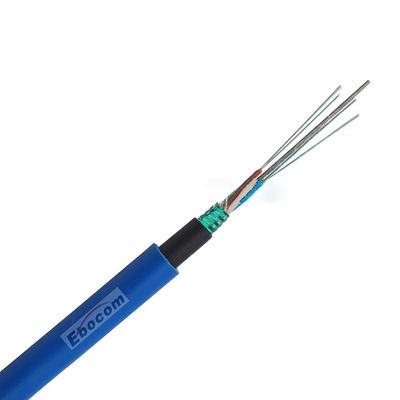

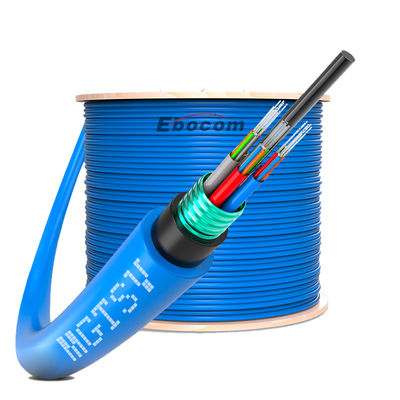

Flame-Retardant MGTSV Mining Fiber Optic Cable 12 24 36 48 60 72 Core Double Jackets For Mining
| उत्पत्ति के प्लेस | शैंडोंग ， चीन |
|---|---|
| ब्रांड नाम | EBOCOM |
| प्रमाणन | ISO TLC |
| मॉडल संख्या | एमजीटीएसवी |
| न्यूनतम आदेश मात्रा | 2000M |
| मूल्य | EXW ≥2000m $0.5/M ≥5000m $0.47/M |
| पैकेजिंग विवरण | 1। आयरन-वुडन ड्रम या नॉन-फ्यूमिगेशन वुडन ड्रम, सामान्य लकड़ी के ड्रम। 2। ड्रम का आकार डिज़ाइन किया ज |
| प्रसव के समय | 7-15 दिन |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | 10kms/दिन |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण

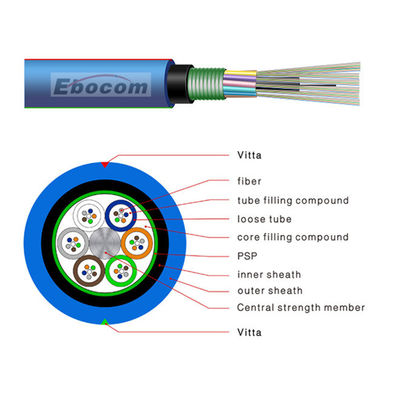

| केबल मॉडल | एमजीटीएसवी फाइबर ऑप्टिक केबल | ताकत सदस्य | इस्पात तार टेप |
|---|---|---|---|
| जैकेट की सामग्री | पे फ्लेम रिटार्डेंट पीई/एलएसजेडएच | मुड़ी हुई बहिः प्रकोष्ठिका | स्टेटिक 10*केबल-डी डायनेमिक 20*केबल-डी |
| परिचालन तापमान | -40 डिग्री सेल्सियस ~ + 70 डिग्री सेल्सियस | रंग | काला |
| फाइबर गिनती | 4-288 करोड़ | तंतु -प्रकार | G652D G657A1 G657A2 |
| प्रमुखता देना | flame-retardant mining fiber optic cable,MGTSV mining optic cable 72 core,double jacket mining fiber cable |
||
उत्पाद विवरण
Product description
MGTSV cable, or flame-retardant mine communication cable, is a fiber optic transmission cable designed for underground environments such as coal and gold mines. It is primarily used for signal transmission within mines, ensuring stable communication in complex environments such as those prone to flammable and explosive conditions, moisture, and mechanical impact. Its core feature is that it must pass the National Coal Mine Safety Mark Certification (MA/KA certification), making it a mandatory certification product. Products that have not obtained certification are not allowed to be used in mining scenarios.
Application
Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Key Features and Installation Requirements:
- Core Performance
Flame-retardant and explosion-proof: The outer layer features a flame-retardant sheath, meeting underground coal mine fire protection requirements.
Anti-interference: Fiber optic transmission is immune to electromagnetic interference, and the non-metallic structure reduces the risk of electric shock.
Mechanical Protection: Steel tape armor enhances tensile and compressive strength, adapting to the complex underground installation environment.
- Installation Precautions
The installation must be kept away from fire sources and high-voltage equipment. Avoid excessive bending at corners that could cause fiber breakage.
After installation, insulation resistance and leak detection tests must be performed to ensure compliance with safety standards.
Pay attention to heat dissipation in summer and prevent low-temperature embrittlement in winter. Regularly check the air cooling and air heating status during operation.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
